Logic gates are the fundamental building blocks of any digital system, forming the core of computer hardware and modern electronics. By processing binary inputs (0 and 1), these gates produce a specific output based on logical operations. Whether you're studying computer science, or engineering, or just curious about how digital devices work, understanding logic gates is crucial. In this blog post, we’ll explore the main types of logic gates — AND, OR, XOR, NOT, NAND, NOR, and XNOR — and how they function.

**What Are Logic Gates?**

A **logic gate** is a device that performs a basic logical function in digital circuits. It receives one or more binary inputs and generates a single binary output. Logic gates are built using transistors, and they operate based on Boolean algebra. Every logic gate operates based on a specific logical operation, such as addition, negation, or comparison, which is crucial for processing information in computers.

Let’s dive into the different types of logic gates and how they work.

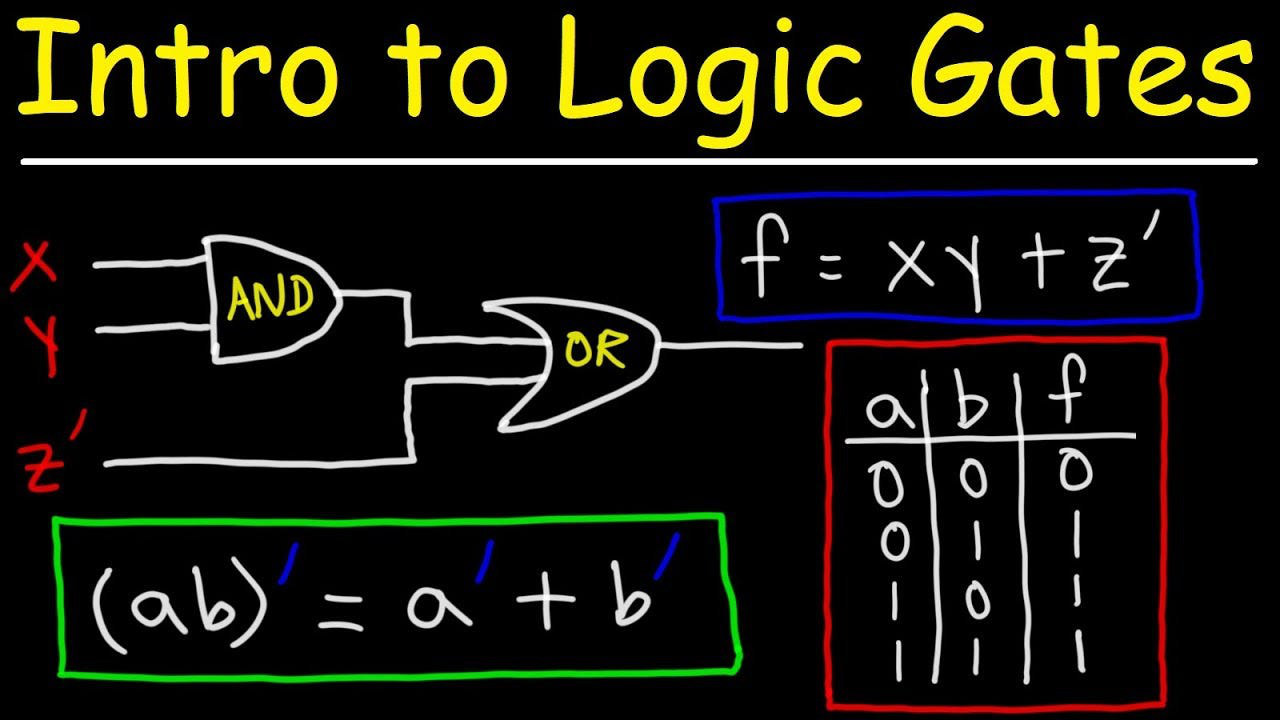

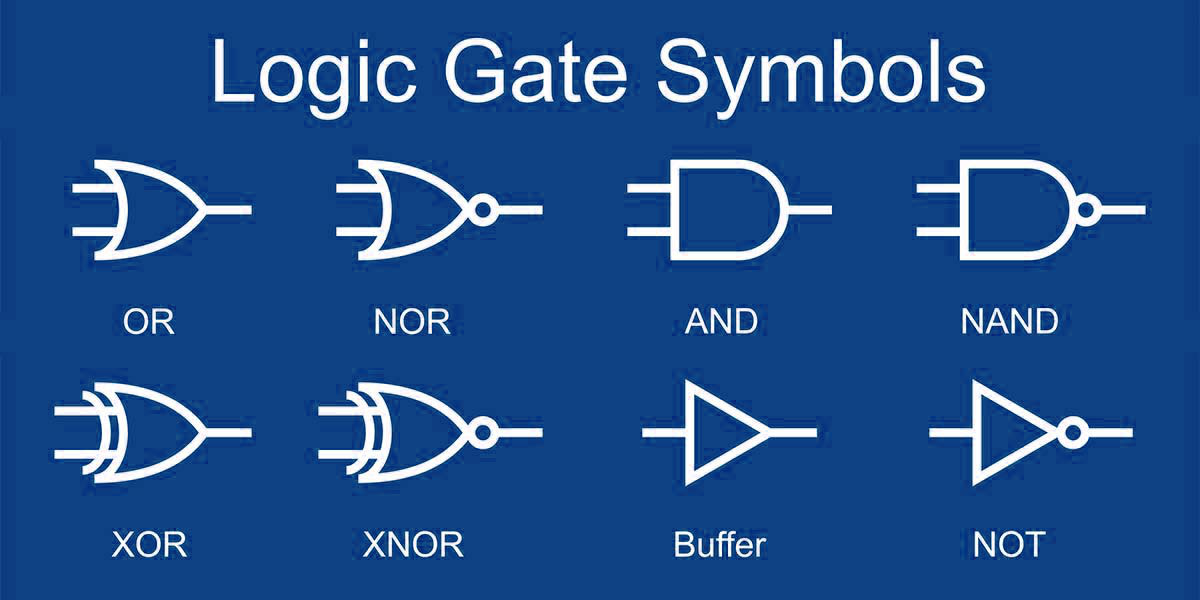

**Types of Logic Gates**

**1. AND Gate**

The AND gate is one of the simplest logic gates. It outputs a 1 (TRUE) only if all its inputs are 1. If one or both inputs are 0 (FALSE), the output will be 0. Here's the truth table for the AND gate:

Input A | Input B | Output |
---|---|---|

0 | 0 | 0 |

0 | 1 | 0 |

1 | 0 | 0 |

1 | 1 | 1 |

**2. OR Gate**

The OR gate outputs a 1 (TRUE) if at least one of its inputs is 1. It only outputs a 0 if both inputs are 0.

Input A | Input B | Output |
---|---|---|

0 | 0 | 0 |

0 | 1 | 1 |

1 | 0 | 1 |

1 | 1 | 1 |

**3. XOR Gate (Exclusive OR)**

The XOR gate outputs a 1 if **only one** of its inputs is 1. If both inputs are 0 or both are 1, the output will be 0.

Input A | Input B | Output |
---|---|---|

0 | 0 | 0 |

0 | 1 | 1 |

1 | 0 | 1 |

1 | 1 | 0 |

**4. NOT Gate (Inverter)**

The NOT gate, also known as an inverter, has only one input and one output. It simply inverts the input: if the input is 0, the output will be 1, and if the input is 1, the output will be 0.

Input | Output |
---|---|

0 | 1 |

1 | 0 |

**5. NAND Gate (NOT AND)**

The NAND gate is the inverse of the AND gate. It outputs 0 only when all its inputs are 1. In all other cases, it outputs 1.

Input A | Input B | Output |
---|---|---|

0 | 0 | 1 |

0 | 1 | 1 |

1 | 0 | 1 |

1 | 1 | 0 |

**6. NOR Gate (NOT OR)**

The NOR gate is the inverse of the OR gate. It only outputs 1 when all its inputs are 0. If any input is 1, the output is 0.

Input A | Input B | Output |
---|---|---|

0 | 0 | 1 |

0 | 1 | 0 |

1 | 0 | 0 |

1 | 1 | 0 |

**7. XNOR Gate (Exclusive NOR)**

The XNOR gate is the inverse of the XOR gate. It outputs 1 if both inputs are the same (both 0 or both 1), and 0 if the inputs are different.

Input A | Input B | Output |
---|---|---|

0 | 0 | 1 |

0 | 1 | 0 |

1 | 0 | 0 |

1 | 1 | 1 |

**Applications of Logic Gates**

**Logic gates** play an essential role in every digital system, from the simplest circuits to the most complex processors. Their applications include:

**Computers**: At the heart of every processor are millions of logic gates that perform arithmetic and decision-making tasks.**Robotics**: Logic gates are used in decision-making circuits in robots.**Memory devices**: Flip-flops and other memory elements rely on logic gates.**Communication systems**: Data transmission systems use gates for encoding and decoding signals.**Security systems**: Logic gates are used to trigger alarms or other actions when specific conditions are met.

Read More:

Citadel: Honey Bunny – Varun Dhawan and Samantha Ruth Prabhu Thrill Fans with Action-Packed Spy Roles-Click Here

**Conclusion**

Logic gates are the building blocks of digital electronics. They perform essential logical functions that make complex computations possible. Understanding how each type of logic gate — AND, OR, XOR, NOT, NAND, NOR, and XNOR — works is fundamental to learning how digital devices operate. Whether you're designing circuits, studying computer systems, or simply exploring how digital technology works, a solid understanding of logic gates is invaluable.
